Introduction

Spreadsheets are widely used in biochemical laboratories for both recording and analyzing experiments. When experiments become routine, spreadsheet templates are often created to streamline workflows and ensure consistency.

The goal of the excelDataGuide package is to enable the use of Excel spreadsheets alongside scripting environments as effective data analysis tools. While scripting languages offer more flexibility and power—especially for analyzing large datasets across multiple workbooks—the spreadsheet remains the primary source of all data.

This “single-source-of-truth” approach ensures that both spreadsheet-based and script-based analyses rely on the same underlying data and parameters. This includes:

• Metadata
• Experimental parameters (e.g., acceptance criteria, concentrations)
• Measured data

Parameters such as acceptance criteria are typically defined by standard operating procedures (SOPs) and fixed in the spreadsheet templates. Other values, such as experimental measurements or fitted parameters, vary per experiment and are entered by the user.

In some cases, it may be beneficial for the script to also use calculated data from the spreadsheet—especially when those calculations are automatically triggered upon user input. This decision depends on the specific analysis needs and the reliability of spreadsheet-based computations.

Structuring a template

To provide a link between the data structures of programming languages and those in a spreadsheet we consider the following four types of data structures in a template:

• keyvalue: a key-value pair, where the key is a variable name and the value is the value of that variable. The key and value are placed in horizontally adjacent cells (columns). The key, or its translated short name (see below) is to be used as the parameter name in the scripts and should conform to variable naming rules for the scripting language used. The key is found in the left-most cell of a cell range. The value can be a single value (one cell) or a vector of values (multiple cells).
• cells: occasionally it may be more convenient to read values from single cells and provide the keys (names) of the corresponding variables in the data guide. These data will be stored as key-value pairs, but in contrast to the keyvalue data type where a variable name is provided in the template the data guide must provide a variable name.
• table: tabular data where columns represent variables and rows represent items in which these variables are assessed. Column names are written in the first row and are used as variable names.
• platedata: data are registered in the same row-column format as the microplate in which the experiment was performed. The first row contains the variable name in its left-most cell, and is followed by (integer) column names. Every subsequent row contains the row name (in capital letters) followed by the values for each well. Both variable name and data are read by the script. The column and row names are ignored. Therefore, the first row and column in the range could also be empty, except for the variable name. Plate data are stored as tables in which, apart from the variables provided in the template two additional columns are added, namely row and column, corresponding to the row and column in a microplate.

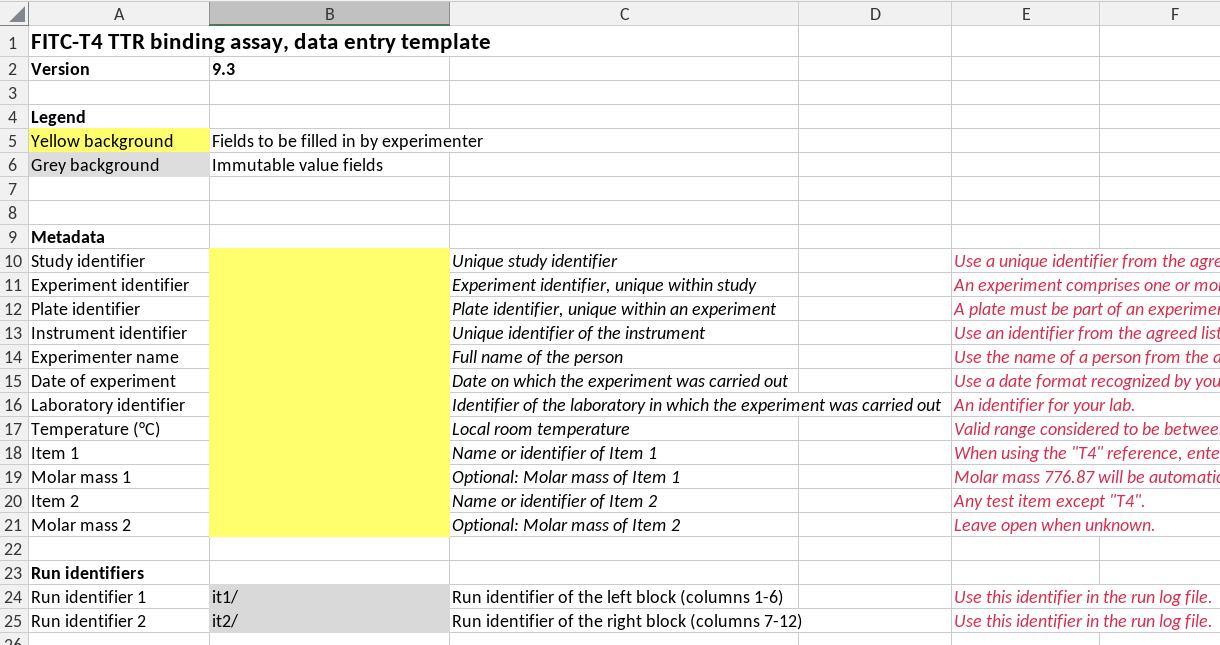

Below is an example of the front page of a template (of the fitc-t4 TTR assay), illustrating a number of ideas and concepts that we discuss below.

First page of a template

A template has a version number

Unique template version numbers are a way to prevent misunderstandings between users and are also needed here to check whether a data guide is compatible with the template version.

Version numbering rules. We follow the R-package version rules. A version number has the structure major.minor or major.minor.patch, where major, minor and patch are each integer values. A version consisting of only a major number is invalid, but will be interpreted as having a minor version 0, i.e. a version “2” will be interpreted as “2.0”.

In practice this means that the format of the cell in which the version number is recorded should be text, and not general or number

A template name is optional. Preferably, a template also has a name. Note that the example in the figure above doesn’t have a name.

Checking compatibilty of template versions and a guide version. We use template version numbers to check compatibility with a guide. In principle the same guide can be used for multiple versions of a template as long as the locations and names of variables indexed in the guide did not change. This is the case when, for example, only explanatory texts or calculations or data validity checks have changed in the template. When checking version compatibility we assume that a guide is compatible with a consecutive range of template versions between a minimal and a maximal version number.

All cells are protected except those for data entry

Data entry cells have a distinct background color, here “marker yellow”. All other cells have protected status to prevent users from inadvertently changing them.

Include comments

Refer to the SOP+ version

Built-in data entry checks

The validity of data entered by the users should be checked by validity checks, especially when misunderstandings are likely to happen. The validity checking capability by excel is limited. In cases where the data structure can not be properly described by a validity rule we add a comment next to the cell in which the data is entered.

A single source of parameters

The parameters as key-value pairs

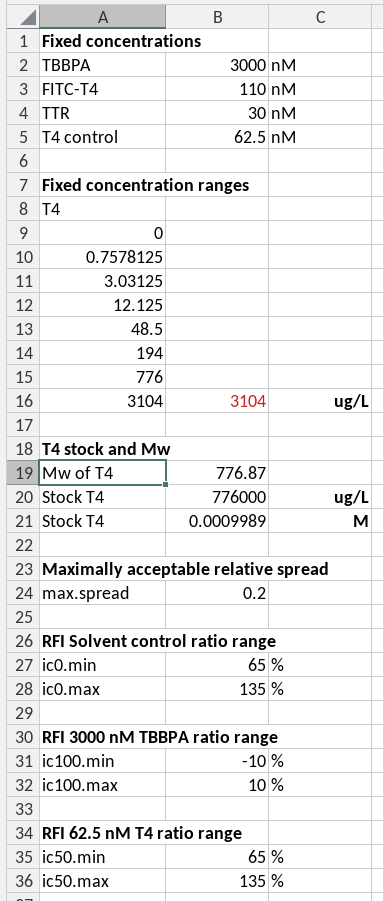

Parameters needed for calculations, for example for acceptance criteria of measurements are best entered on a separate sheet, and referred to by absolute references in calculations. In the case of the example we have a separate hidden sheet called *_parameters* for this purpose. The information in this sheet is indexed in the data guide, and therefore available to R-scripts as well.

Use of hidden worksheets for data transfer

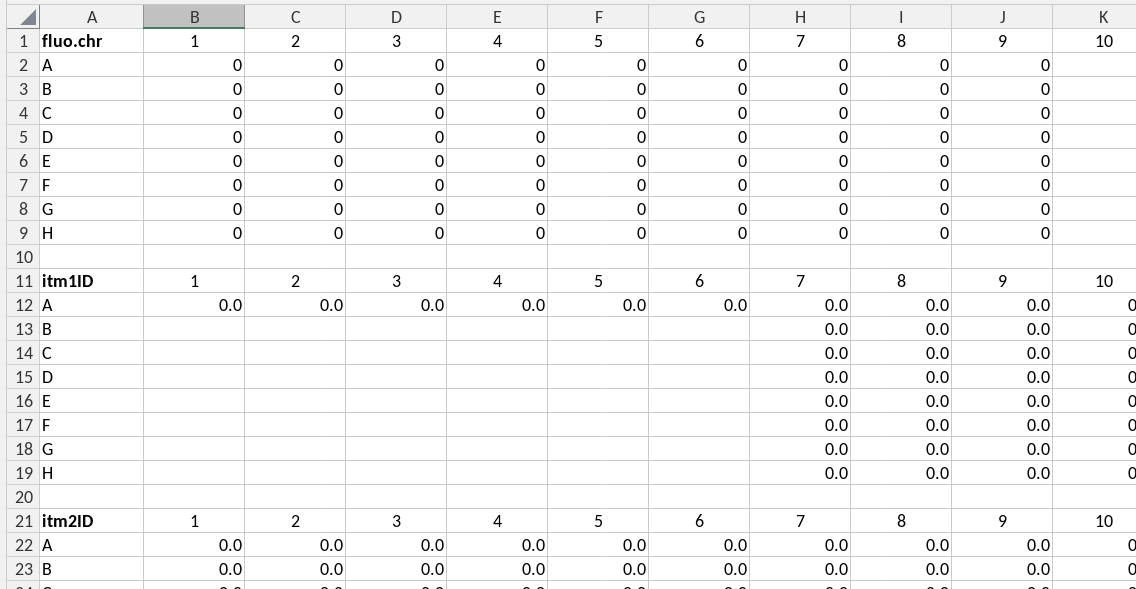

A hidden sheet with links to plate-formatted data

What else?

The keyvalue format will be mostly used for metadata and parameters. All keyvalue will be aggregated in a single named list called “keyvalue”.

The platedata format will be used for measured data and data concerning concentrations in the plate wells. All ranges will be aggregated in a single data frame with reported variables as column names, including the column names “row” and “col”, corresponding to the row and column names of the plate.

Constructing a guide

Every spreadsheet template should be accompanied by a data guide, and index registering the location of different data structures in the template. This guide is a yaml file, a human editable and computer readable file format.

Below is an example of the first rows of a data guide:

guide.version: '1.0'
template.name: competition
template.min.version: '9.3'
template.max.version: ~
plate.format: 96
locations:
  - sheet: description
    type: cells
    varname: .template
    translate: false
    variables:
      - name: version
        cell: B2
  - sheet: description
    type: keyvalue
    translate: true
    atomicclass:
      - character
      - character
      - character
      - character
      - character
      - date
      - character
      - numeric
      - character
      - numeric
      - character
      - numeric
      - character
      - character
    varname: metadata
    ranges:
      - A10:B21
      - A24:B25
# remainder not shown

A guide must contain the following elements:

Required elements

• guide.version: the version of the guide
• template.name: a name for the template
• template.min.version: The minimal version of the template for which the guide can be used with the guide
• template.max.version: The maximal version of the template for which the guide can be used.
• locations: the object containing the data locations
• translations: the object containing the translations of variable names. Translations can be used both from extended (‘long’) format to short format and from short to long format. Two functions are provided by the package to perform these translations vice versa.

Conditionally required element:

• plate.format the format of the microplates used for the experiments. This must be either of ‘24’, ‘48’, ‘96’, or ‘384’. This is required when a platedata element occurs in the locations. This plate format is used to check the correctness of dimensions of the ranges of platedata elements.

The elements in locations indicate where data are to be found, whereas the translation part contains translations between long and short names for variables. Short names are used as variable names in the scripts, whereas long names may be used in the spreadsheet, in particular when these are visible to the user. In that case the names should be translated before using them in the script. Reverse translations may be used by the script in the output document.

Locations

Required elements

• sheet: the name of the sheet in which the data are to be found.
• type: the format of the data in the range.
• translate: (true, false) whether the variable names should be translated before use in the script.
• varname: the name of the variable in which the data will be available in the script.
• ranges: an array of ranges in which the data are to be found.

Optional element

• atomicclass: the class of the data in the ranges, Can have values “character”, “numeric”, “integer”, “logical” or “date”., It can.be either a singleton or an array of class of the same length as the number of ranges. If a singleton then by default all values are converted to character. If an atomicclass is given then values are coerced. Coercion is performed by the functions as.character, as.numeric, as.integer, as.logical, respectively, or in case of a date, by a function that produces a Date object.

Checking against the excelDataGuide json schema

Correctness of the structure and syntax of a YAML file like a data guide can be checked against a JSON schema (See json-schema-everywhere). We provide a JSON schema called excelguide_schema.json in the folder data-raw. We use the Polyglottal JSON Schema Validator to validate guides against this schema.
